Black and White Paper Guide

KODAK EKTALURE PAP E R

KODAK EKTALURE Paper is a medium-speed, single contrast, warm-tone, double-weight, fiber-base paper. It is designed for making enlargements and contact prints with reduced illumination. EKTALURE Paper is particularly suited to portraiture and to display and salon work.
You can also use it for copy and restoration work, fine-art applications, and hand-coloring.
It is available in G surface in a variety of sheet sizes.


FEATURES  BENEFITS
  • Warm brown-black  image tone
  • Exceptional warm tones for prints without toning
  • Medium speed(ISO P100)
  •  Suitable for machine and  tray processing

BASE AND SURFACE CHARACTERISTICS

Symbol Texture Surface Base
Tint
Base
Weight
G Fine-grain Lustre Cream DW


SAFELIGHT RECOMMENDATIONS
Use a KODAK OC Safelight Filter (light amber) in a suitable safelight lamp with a bulb of 15 watts or less at least 4 feet (1.2 metres) from the paper. Minimize safelight exposure to avoid unwanted quality changes. Be especially careful if you use other types of safelights.
See KODAK Publication No. K-4, How Safe Is Your Safelight? for information on safelight testing.
Note: Do not use a KODAK OA Safelight Filter (greenish yellow).

STORAGE AND HANDLING
Store paper in a cool, dry place (preferably at or below 70F [21C] and at a relative humidity of 30 to 50 percent). High temperatures or high humidity may produce undesirable changes. Always rewrap unused paper in its original packaging (the outer box as well as the inner wrapper) to protect it from light and moisture. Avoid or shield the paper from exposure to radioactivity or x-rays.

EXPOSURE Light Sources
Expose this paper with tungsten or tungsten-halogen enlarger lamps. You can use other light sources, such as cool-white fluorescent lamps, mercury-vapor lamps (cold light), or cathode-ray tubes. For best results, make test prints to determine the exposure time for each light source.

ISO PAPER SPEED AND RANGE
Tray processed in the following developers at 68F (20C):

KODAK
Developer
ISO Paper
Speed
ISO Paper
Range
SELECTOL-SOFT (1:1) P100 R110
EKTONOL (1 :1) P100 R90


 PROCESSING
Tray
Tray develop with continuous agitation at 68F (20C),
using the appropriate dilution and development time
recommended in the following table.

KODAK
Chemical
Dilution
(chemical:
 water)
Time
(min;sec)
Capacity
(8 x 10-inch
Prints
per gal/L)
Developer 68F (20C)
EKTAFLO, Type 2
DEKTOL
EKTONOL
SELECTOL-SOFT*
 1 :9
1:2
1:1
1:1
2:00
2:00
2:00
2:00
100/26
100/26
80/20
80/20
Stop Bath-.65 to:75F (18 to 24C)
Indicator
EKTAFLO
1:64
1:31
0:15
0:15
80/20t
80/20t
fixer (single bath#)65 to 75F (1 8 to 24C)
Non-hardening fixer (for general printing and for toning):
Rapid Fixer,
Solution A (do not
use Solution B)
1 :7 5:00 100/26
Hardening fixers (for general printing&):
KODAK Fixer
POLYMAX T
Rapid Fixer (Solution A and B)
KODAFIX Solution
-
1 :7
1 :7
1 :7
10:00
5:00
5:00
10:00
100/26
100/26
100/26
100/26
Wash-
With Washing Aid-50 to 86F (10 to 30C):
Hypo Clearing
Agent
stock
solution
1 :4
3:00  80/20 without
 pre-rinsed
 200/50 with
 1 -minute
 pre-rinse
Wash 20:00 -
Without Washing Aid-50 to 86F (10 to 30C):
- 60:00 -
* Lower contrast
tDiscard the solution when color changes to a purplish blue.
#To increase capacity, use two fixing baths.
&A hardening fixer may improve release on ferrotyping drums.

Stop Bath
Bathe prints for at least 15 seconds at 65 to 75F (18 to 24C) with continuous agitation in KODAK EKTAFLO Stop Bath, KODAK Indicator Stop Bath, or 48 mL KODAK 28% Acetic Acid and water to make 1 L.
With EKTAFLO or Indicator Stop Bath, discard the solution when the color changes to a purplish blue. Change Acetic Acid and water stop bath after approximately twenty 8 x 10-inch prints per litre (eighty 8 x 10-inch prints per gallon).

Fixing
Fix prints at 65 to 75F (18 to 24C) with frequent agitation. With KODAK Fixer and KODAFIX Solution, fix for 10 minutes if you use a single bath. If you use two fixing baths, fix prints for 5 minutes in each bath, draining for 5 seconds between baths.
With KODAK Rapid Fixer or POLYMAX T Fixer, fix for 5 minutes if you use a single bath. If you use two fixing baths, fix prints for 21/z minutes in each bath, draining for 5 seconds between baths.
Note: Using a hardening fixer makes toning less efficient. For the same amount of processing time, you'll see less of a toning effect.

Washing
Wash for one hour in running water at 50 to 86F (10 to 30C), interleaving the prints carefully and frequently. The wash-water flow rate should provide at least one complete change of water in the container every 5 minutes. The KODAK Automatic Tray Siphon provides proper movement and agitation during washing.
Avoid prolonged washing and soaking times to minimize physical damage to the prints.
To reduce time and conserve water, use KODAK Hypo Clearing Agent before washing. Transfer the prints, with or without a previous rinse, to the clearing agent. Following the Hypo Clearing Agent, wash prints for 20 minutes with agitation and normal water flow.

Drying
Remove as much surface water as possible from prints and dry the prints in a dust-free place. Place prints face down on cheesecloth, fiberglass, or plastic screen racks; between photo blotters; or on a belt dryer. Dry at temperatures below 180F (82C) to avoid excessive curl and changes in the gloss of the lustre surface.

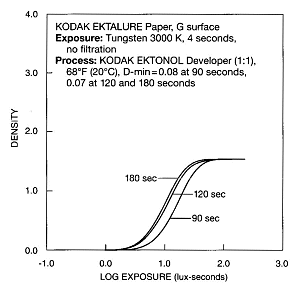

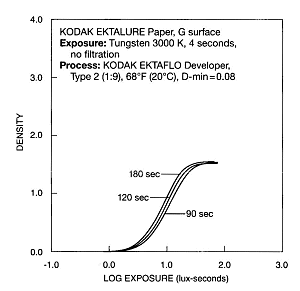

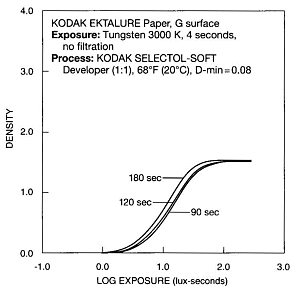

Characteristic Curves





TONING
Treatment with a toner extends the life of prints that may be exposed to oxidizing gases or subjected to adverse storage or display conditions. KODAK Toners will protect prints whether or not they produce a tone shift.

Processing Tone Shift with KODAK Toners
Full Moderate Very
Slight
None
Tray
(KODAK
EKTAFLO
Developer,
Type 2)
POLY-TONER
 (1:24)
 (1:50)
POLY-TONER
 (1:4)
Rapid
Selenium
(1:9)
Rapid
Selenium
(1:20)
(1:40)
Brown
(1:19)
Rapid
Selenium
(1:3)
Sepia
For more information on toning, see KODAK Publication G-23, Toning KODAK Black-and-White Materials. It explains the technique of toning, and describes Kodak toners and their effects on Kodak black-and-white papers and films.
NOTICE: The sensitometric curves and data in this publication represent product tested under the conditions of exposure and processing specified. They are representative of production coatings, and therefore do not apply directly to a particular box or roll of photographic material. They do not represent standards or specifications that must be met by Eastman Kodak Company. The company reserves the right to change and improve product characteristics at any time.

MORE INFORMATION
Kodak has many publications to assist you with information on Kodak products, equipment, and materials. The following publications are available from Kodak through the order form in KODAK Publication No. L-1, KODAK Index to Photographic Information. To obtain a copy of L-1, send your request with $ 1 to Eastman Kodak Company, Department 412-L, Rochester, New York 14650-0532.

  • E-30     Storage and Care of KODAK Photographic Materials-Before and After Processing
  • G-23    Toning KODAK Black-and-White Materials
  • J-5        KODAK POLYMAX T Developer and KODAK POLYMAX T Fixer
  • K-4      How Safe Is Your Safelight?
Introducing Kodak Information Center's Faxback System
-Available 24 hours a day, 7 days a week Many technical support publications for Kodak professional products can be sent to your fax machine
from the Kodak Information Center. Call: 1-800-242-2424, Ext. 33
If you have questions about Kodak professional products, call Kodak.
In the U.S.A.:
1-800-242-2424, Ext. 19, Monday-Friday 8 a.m.-8 p.m. (Eastern time)
In Canada:
1-800-465-6325, Monday-Friday 8:30 a.m.-5 p.m. (Eastern time)
Note: The Kodak materials described in this publication for use with KODAK EKTALURE Paper are available from dealers who supply Kodak professional products. You can use other materials, but you may not obtain similar results.
